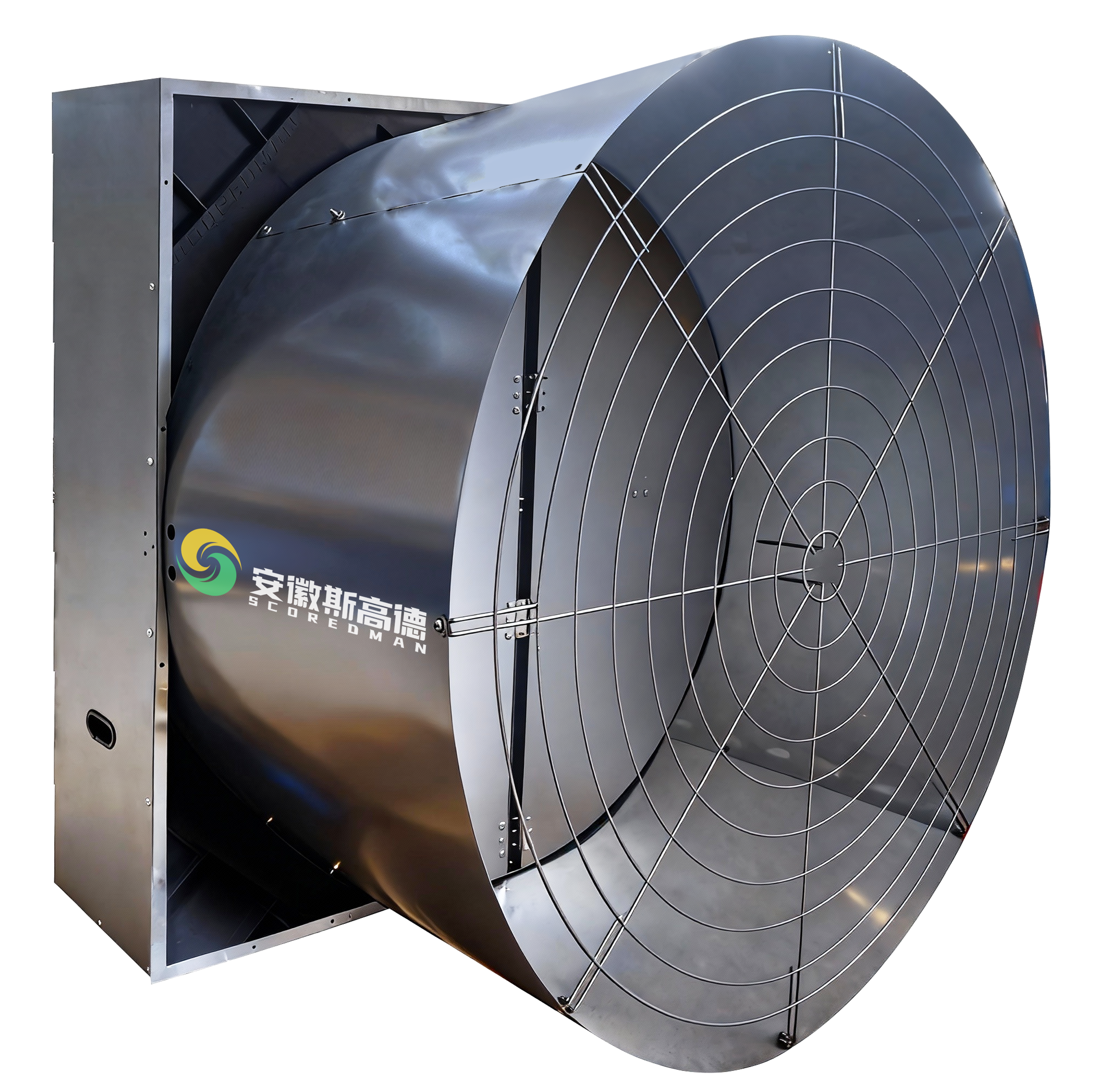

HGF-50 Fan
Scoredman's independently developed HGF-50 high-efficiency energy-saving axial flow fan, a core ventilation equipment specifically designed for the harsh environments of the poultry farming industry. lt combines exceptional performance, energyefficiency, and robust durability, providing powerful and reliable cooling and venti.lation for chicken houses, duck sheds, and other farming facilities. lt is an idealchoice for enhancing breeding efficiency and ensuring livestock health.
• High-Efficiency Negative Pressure Performance: At 75 Pa, theairflow rate reaches 29,000 m3/h.
• Low Operating Energy Cost:Under operating conditions of-75 to 100Pa, the energy efficiency is 30% higher than that of belt-driven fans.
• High-Seal Energy Efficiency: Superior casing sealing significantlyreduces winter poultry house heating costs.
• Low Noise & Vibration: Aerodynamically optimized air duct designminimizes operational vibration and noise.
• Butterfly Shutter Design: Ultra-low flow resistance ensures greaterairflow output per unit time.
• Direct Drive System: High transmission efficiency with enhancedstructural reliability.
• Advanced Composite Impeller: Eco-friendly composite airfoil blades-lightweight, high-strength,and stable in output.

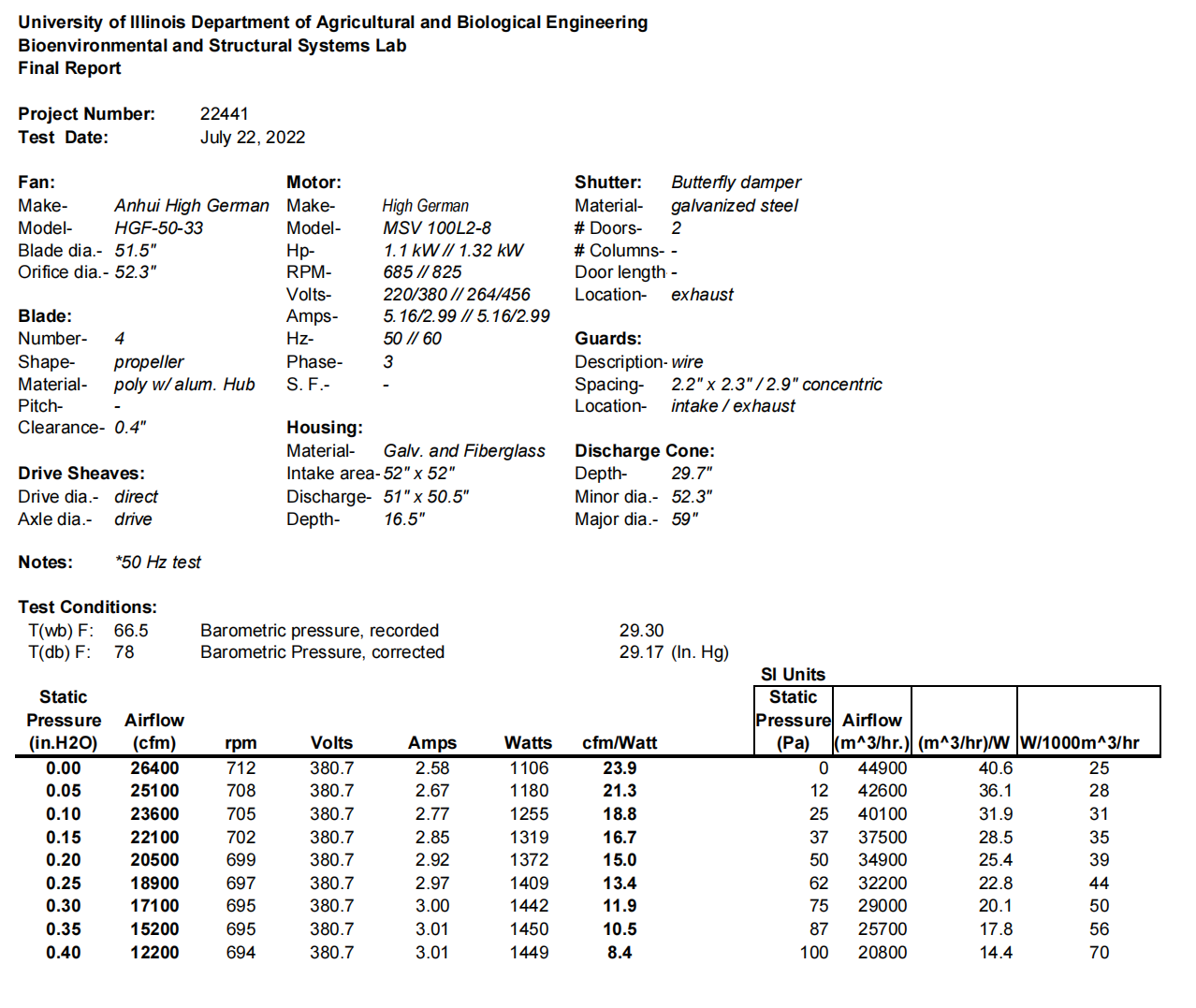

Authoritatively tested and certified by the BESS Laboratory

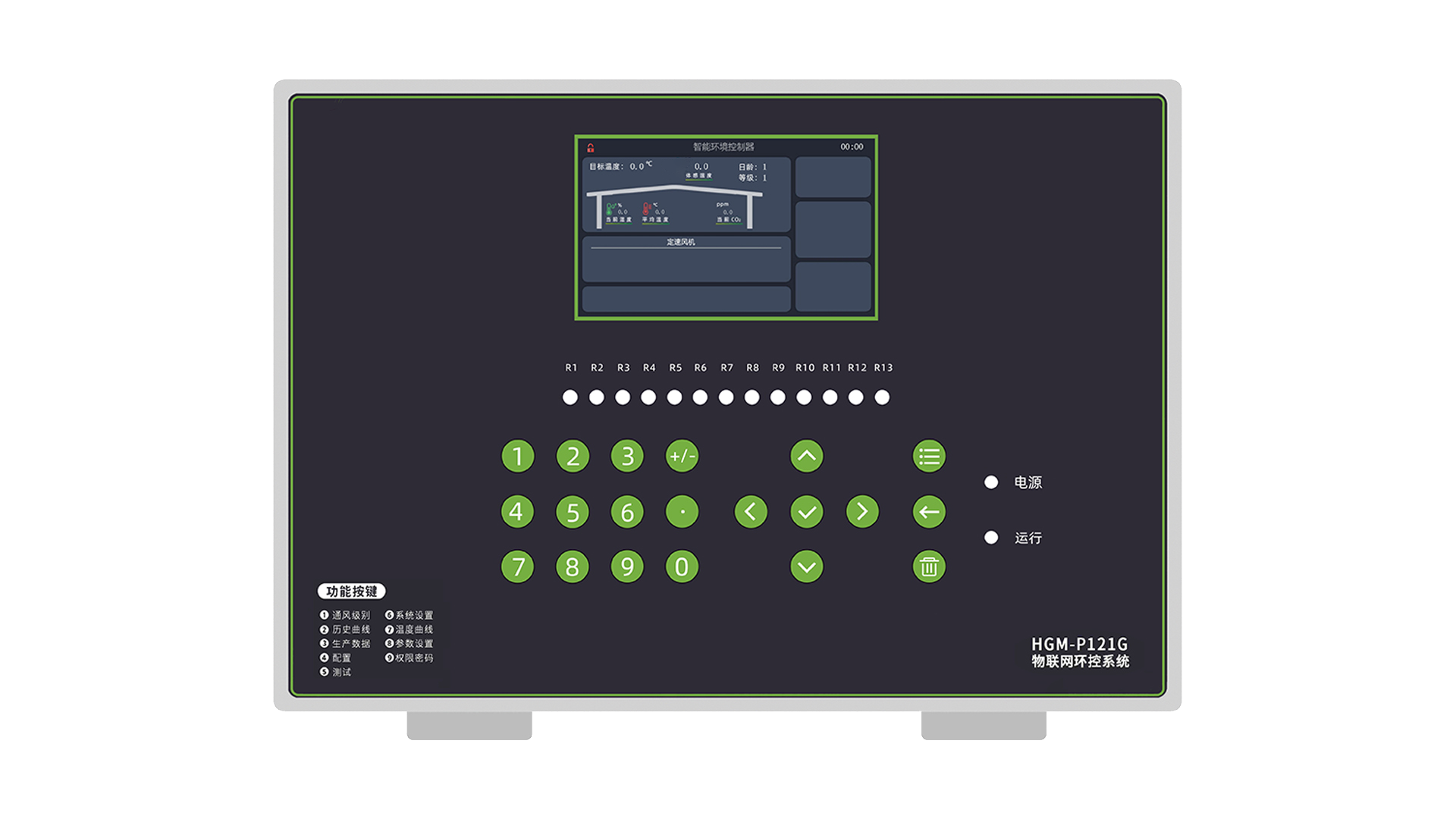

Intelligent Environment Controller
Scoredman’s independently developed Intelligent Environmental Controller (IEC) is a precision environmen-tal management system specifically designed for modern poultry farms. The system integrates advanced sensing and automated control technologies to continuously monitor key environmental parameters, includ-ing temperature, relative humidity, ammonia (NH₃) concentration, and carbon dioxide (CO₂) concentration. Based on preset thresholds, it automatically regulates ventilation equipment to maintain dynamic environ-mental control within the poultry house. The IEC is engineered to optimize microclimate stability and biose-curity, creating an ideal growth environment for poultry while enhancing farming efficiency and overall oper-ational performance.
• Precision Environmental Regulation: Age-dependent preciseadjustment of in-barn temperature, humidity, and gas concentra-tions.
• Intelligent Ventilation Management: Utilizes 30-level preciseventilation calculation to ensure a smooth and stable internalenvironment and ventilation transition.
• Flexible Device Configuration: Relays supporting customiz-able configuration for diverse devices.
• Data Recording & Analysis: Local visualization of tempera-ture-humidity curves with SD card storage capability.
• Remote Network Monitoring: Supports 4G all-network remotemonitoring and alarm functions.
• Fan Intermittent Operation: Supports intermittent operationfor both relay-controlled and variable frequency drive (VFD)fans.
• Batch Parameter Configuration: Supports batch import andexport of controller parameters.
• Detailed Alarm Query: Supports local and server log query.

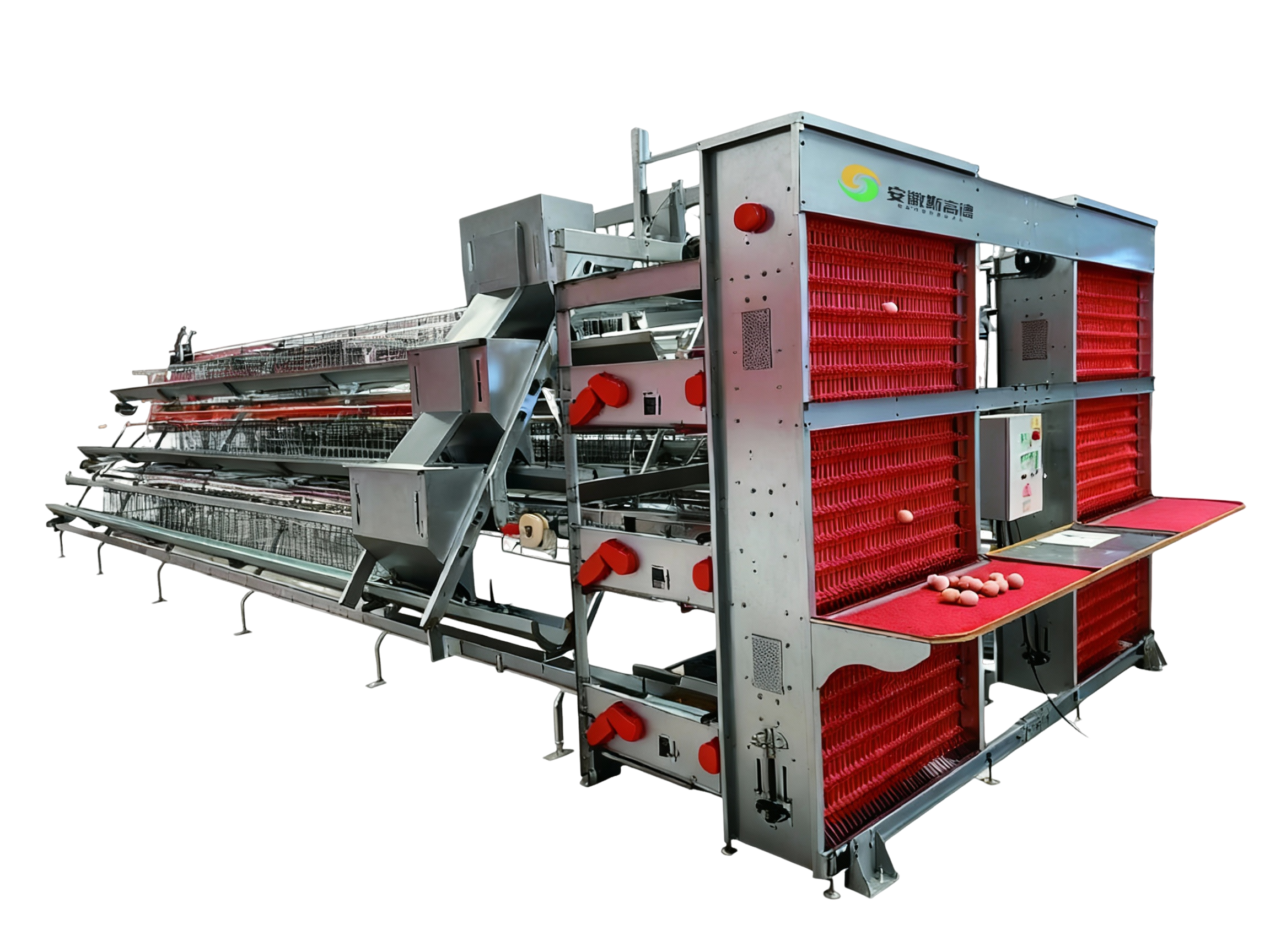

A-frame layer cage system
The Scoredman A-frame layer cage system is an economical solution specifically designed for small to medium-sized farms. it's unique A-frame structure notonly reduces manufacturing costs but also demonstrates exceptional cost-effectiveness The open-frame design fully leverages natu-ral ventilation advantages, significantly reducing energy consumption from mechanical systems and creating a healthierenvironment for poultry. The flexible modular design easily adapts to various farmlavouts, meeting diverse breeding requirements. With its low initial invest-ment,reducedoperational costs, and outstanding adaptability, this system is an ideal choice foreconomicallyconsciousfarming operations.
• The Step-layer cage system is built from hot-dip galvanized steelwith anti-corrosion mesh, ensuring strength, stability, and 15-20years of service life.
• An automatic feeding system adjusts the feed height intelligently,paired with a well-designed trough for feed savings.
• The auto drinking system further cuts labor and feed loss.
• The egg collection system features an 8-9° mesh slope so eggs rollout gently, reducing breakage and boosting efficiency.
• A scraper manure system ensures clean, efficient waste removal,keeping the house hygienic and low in pollution.
• The fully enclosed design supports biosecurity and diseaseprevention, with centralized, automated control for energy andlabor savings.
• Durable components, including the plastic trough and egg belt,ensure long-term reliability.
• From feeding to egg collection, the fully automated processdelivers lower costs, less waste, and greater profitability.

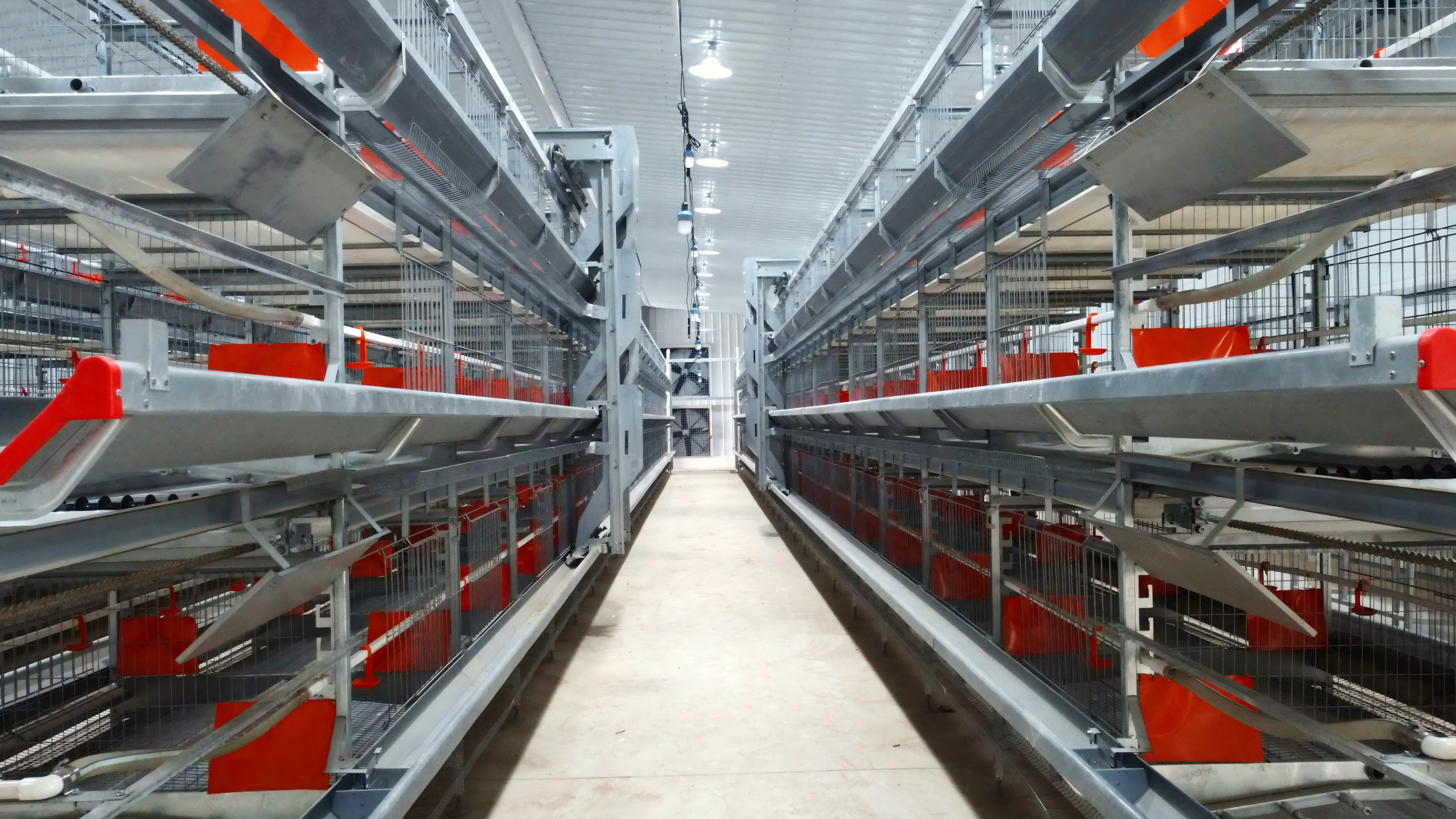

H-frame layer cage system
The Scoredman H-frame layer cage system adopts a unique H-shapedframe structure and multi-tier cage stacking design, significantly enhancing spaceutilization in chicken houses and enabling high-density farming. This system integratesautomated feeding, drinking, manure removal, and environmental control, greatly reducing labor costs and intensity while achieving precise manage-ment. lts advantages lie in providing a stable and clean growth environment for poultry, effectively iso latingwaste to minimize disease transmission, and notably improving feed conversion rates and farming efficiency.it is an ideal choice for large-scale, standardized poultryoperations.
• Layered Layer Cage System is semi-open or fully-open designed foreasy management.
• The side cage mesh is connected with steel wire which canstrengthen the air convection to ensure the venti-lation of thehouse and reduce the temperature of chicken.
• The equipment is easy to clean, which can offer acomfortableliving environment for chicken.
• With full-automatic egg collection system.
• Main frame structure of the equipment with reason-able design.durability,no deformation,stability is made ofhot-dipgalvanized steel plate.
• High precision numerical control machine is utilized forpositioning cutting.
